Attribute
Thread:
MetircProduct Description
Material: carbon steel, stainless steel, brass and aluminium
Plating: Zinc, zinc nickel, colored zinc, phosphating, silvering, etc.

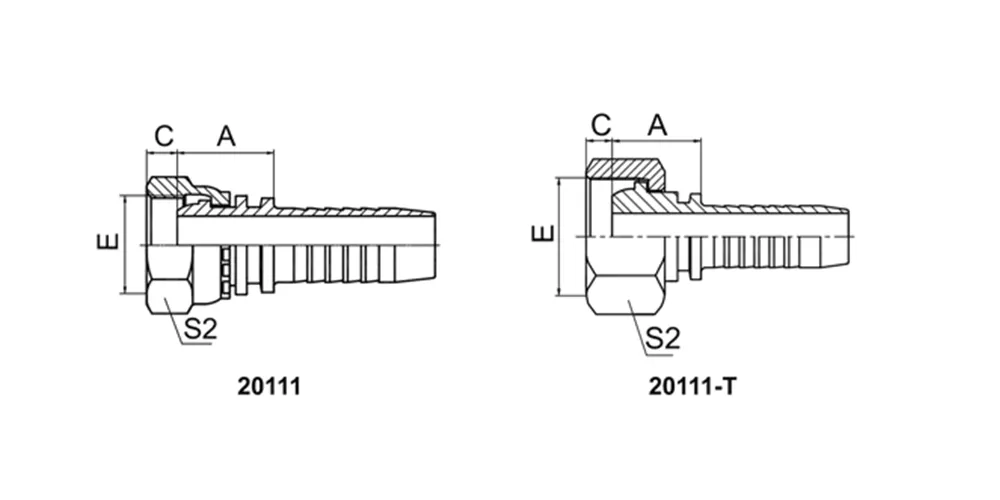

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 20111-10-03 | M10X1 | 5 | 3 | 18 | 2.5 | 14 |
| 20111-10-04 | M10X1 | 6 | 4 | 18 | 2.5 | 14 |
| 20111-12-04 | M12X1.5 | 6 | 4 | 18.5 | 4 | 17 |
| 20111-12-05 | M12X1.5 | 8 | 5 | 18.5 | 4 | 17 |
| 20111-14-04 | M14X1.5 | 6 | 4 | 19.5 | 4.5 | 19 |
| 20111-14-05 | M14X1.5 | 8 | 5 | 19.5 | 4.5 | 19 |
| 20111-16-04 | M16X1.5 | 6 | 4 | 19.5 | 4.5 | 22 |
| 20111-16-05 | M16X1.5 | 8 | 5 | 20 | 4.5 | 22 |
| 20111-16-06 | M16X1.5 | 10 | 6 | 20 | 4.5 | 22 |
| 20111-18-05T | M18X1.5 | 8 | 5 | 21.5 | 4 | 24 |
| 20111-18-06 | M18X1.5 | 10 | 6 | 21.5 | 4 | 24 |
| 20111-18-08 | M18X1.5 | 12 | 8 | 22 | 4 | 24 |
| 20111-20-06T | M20X1.5 | 10 | 6 | 20.5 | 5.5 | 24 |
| 20111-20-08 | M20X1.5 | 12 | 8 | 23 | 5.5 | 27 |
| 20111-22-06T | M22X1.5 | 10 | 6 | 21 | 5 | 27 |
| 20111-22-08 | M22X1.5 | 12 | 8 | 23.5 | 5 | 27 |
| 20111-22-10 | M22X1.5 | 16 | 10 | 24 | 5 | 27 |
| 20111-24-08T | M24X1.5 | 12 | 8 | 22 | 5.5 | 30 |
| 20111-24-10 | M24X1.5 | 16 | 10 | 25.5 | 5 | 30 |
| 20111-27-08DT | M27X1.5 | 12 | 8 | 23 | 5.5 | 32 |
| 20111-27-10DT | M27X1.5 | 16 | 10 | 26 | 5.5 | 32 |
| 20111-27-12D | M27X1.5 | 20 | 12 | 26 | 5.5 | 32 |
| 20111-27-10T | M27X2 | 16 | 10 | 24 | 7 | 32 |
| 20111-30-12D | M30X1.5 | 20 | 12 | 26.5 | 6 | 36 |
| 20111-30-12 | M30X2 | 20 | 12 | 26.5 | 7 | 36 |
| 20111-36-12T | M36X2 | 20 | 12 | 26 | 7 | 41 |
| 20111-36-14T | M36X2 | 22 | 14 | 26 | 7 | 41 |
| 20111-39-14T | M39X2 | 22 | 14 | 28.5 | 7 | 46 |
| 20111-39-16T | M39X2 | 25 | 16 | 29.5 | 7 | 46 |
| 20111-42-16T | M42X2 | 25 | 16 | 30 | 8.5 | 50 |
| 20111-45-20T | M45X2 | 32 | 20 | 31.5 | 8.5 | 55 |
| 20111-52-20T | M52X2 | 32 | 20 | 33 | 9 | 60 |
| 20111-52-24T | M52X2 | 40 | 24 | 33 | 9 | 60 |
| 20111-64-32T | M64X2 | 50 | 32 | 35 | 14 | 75 |
MASTER is one of the largest manufacturers of Metric Female Multiseal Hose Fittings in China with a history of over 30 years with 275 employees, including 26 experienced engineers. The office building, production workshop, and warehouse totally cover an area of 58000m², equipped with 500 CNC machining machines, 160 sets of automated robotic arms, 4 hot forging production lines, and 2 nut sleeve forging lines. We have also obtained a series of certifications such as IATF16949, ISO9001, GBT24001, GBT45001, GBT19001, etc.
We are committed to manufacturing various types of hydraulic adapters, hose fittings, hose assemblies, liquid cooling fittings, cold plates, UQD quick connector, etc., which are widely used in various industries such as new energy commercial vehicles, rail transit, engineering machinery, wind power, liquid-cooled data center, etc. Our products are sold to more than ten countries including Germany, Switzerland, the United States, Japan, South Korea, Brazil, and the Philippines.
